होम उत्पाददहनशीलता परीक्षण उपकरण

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

प्रमाणन
चीन Hai Da Labtester प्रमाणपत्र
चीन Hai Da Labtester प्रमाणपत्र
ग्राहक समीक्षा
हां, हमने पिछले हफ्ते मशीन प्राप्त की। यह मशीन अच्छी थी, और बिक्री के बाद के सीरियल्स का धन्यवाद, बहुत पेशेवर था।

—— Peter Maas

कंपनी की ओर से आपके कारखानों और कंपनियों का दौरा करने के लिए, तकनीकी कर्मचारी बहुत पेशेवर और रोगी हैं, मुझे लगता है कि मैं आपके साथ फिर से सहयोग करने में प्रसन्न रहूंगा।

—— Steve Hubbard

मैं अब ऑनलाइन चैट कर रहा हूँ

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric
High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

बड़ी छवि :  High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Haida
प्रमाणन: CE,,ISO
मॉडल संख्या: 6008-एचडी
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: राल फाइबर और पीपी फिल्म के साथ संरक्षित प्रत्येक सेट, फिर ऑपरेशन मैन के साथ मजबूत लकड़ी के मामले में
प्रसव के समय: आदेश की पुष्टि के 20 दिन बाद
भुगतान शर्तें: एल/सी, टी/टी, डी/ए, डी/पी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता: प्रति माह 300 सेट

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric

वर्णन
चैंबर वॉल्यूम: एक कांच के अवलोकन दरवाजे के साथ, 0.5 m ing, बूंद अंतराल: समायोज्य: 0-99.99 सेकंड
फिल्टर पेपर: मानक आयाम; मोटाई: 0.15-0.17 मिमी विद्युत आपूर्ति: एसी 220V, 50 हर्ट्ज, 1KVA
प्रमुखता देना:

High Voltage Tracking Resistance Test Machine

,

flammability test Machine For Fabric

,

flammability tester For fabric

High Voltage Tracking Resistance Tester GB/T 6553-2003

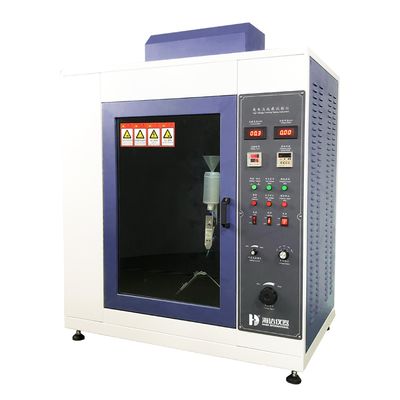

Product Description


The High Voltage Tracking Resistance Tester is designed to evaluate the tracking and erosion resistance of electrical/electronic products, household appliances, and their materials. High Voltage Tracking Resistance Tester simulates harsh environmental conditions by applying liquid contaminants and inclined samples under power frequency (48Hz-62Hz) to assess the performance of electrical insulation materials.

Test Standard

The equipment is manufactured in accordance with GB/T 6553-2003 and IEC 60581:1984 standards.
Product Specifications

Model 6008-HD
Chamber Volume ≥0.5 m³, with a glass observation door.
Electrical Load Adjustable voltage range: 0-6000V ±5%. Overcurrent protection trips at ≥60mA for 2 seconds, triggering an audible alarm (reset via voltage stop).
Droplet Interval Adjustable: 0-99.99 seconds.
Filter Paper Standard dimensions; thickness: 0.15-0.17mm.
Electrodes Thickness: 0.5mm; spacing between upper and lower electrodes: 50±0.5mm (standard-compliant dimensions).
Droplet System Adjustable height; contaminant flow rate: 0.075-0.9 mL/min; pre-settable test duration.
Key Features Stainless steel construction for all components (electrodes, fasteners, screws, washers, nuts).
Power Supply AC 220V, 50Hz.

High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 0






About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 1High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 2High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 3High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 4High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 5High Voltage Tracking Resistance Test Machine / Flammability Tester For Fabric 6




Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined



FAQ:

Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
