Precise Bottle Compression Test Machine 200 Mm/min

Precise Bottle Compression Test Machine 200 Mm/min
Precise Bottle Compression Test Machine 200 Mm/min Precise Bottle Compression Test Machine 200 Mm/min Precise Bottle Compression Test Machine 200 Mm/min Precise Bottle Compression Test Machine 200 Mm/min

बड़ी छवि :  Precise Bottle Compression Test Machine 200 Mm/min

उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Haida
प्रमाणन: CE、ISO
मॉडल संख्या: 5077-HD
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: राल फाइबर और पीपी फिल्म के साथ संरक्षित प्रत्येक सेट, फिर ऑपरेशन मैन के साथ मजबूत लकड़ी के मामले में
प्रसव के समय: आदेश की पुष्टि के 20 दिन बाद
भुगतान शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता: प्रति माह 300 सेट

Precise Bottle Compression Test Machine 200 Mm/min

वर्णन
समारोह: संपीड़न परीक्षण, पेपर ट्यूब कंप्रेसिव स्ट्रेंथ टेस्ट, फट टेस्टर, तन्यता परीक्षण, पेपर टेस्ट इंस्ट्रू नाम: पेपर कप ट्यूब कंप्रेसिव स्ट्रेंथ टेस्टर, पेपर टेस्टिंग इंस्ट्रूमेंट पेपर जीएसएम परीक्षक/ फटने वाली श
प्रदर्शन: एलसीडी, डिजिटल प्रदर्शन यूनिट स्विच: केजीएफ, एन। (वैकल्पिक), एलबीएफ
Testing speed: 10 ~ 200 mm/min आयाम: 360*264*400 मिमी, 70*34*60 सेमी, 85*65*80 सेमी
माप -सीमा: 250-5600 kPa, 10 ~ 1000mn प्रदर्शन विधा: एलसीडी डिस्प्ले, डिजिटल मोड
डिजाइन मानदंड: आईएसओ 2248, एएसटीएम-डी 2210, टप्पी टी 403, जीबी/टी 4857-92, जेआईएस Z0202-87
प्रमुखता देना:

Bottle Compression Test Machine

,

Precise Bottle Compression Test Machine

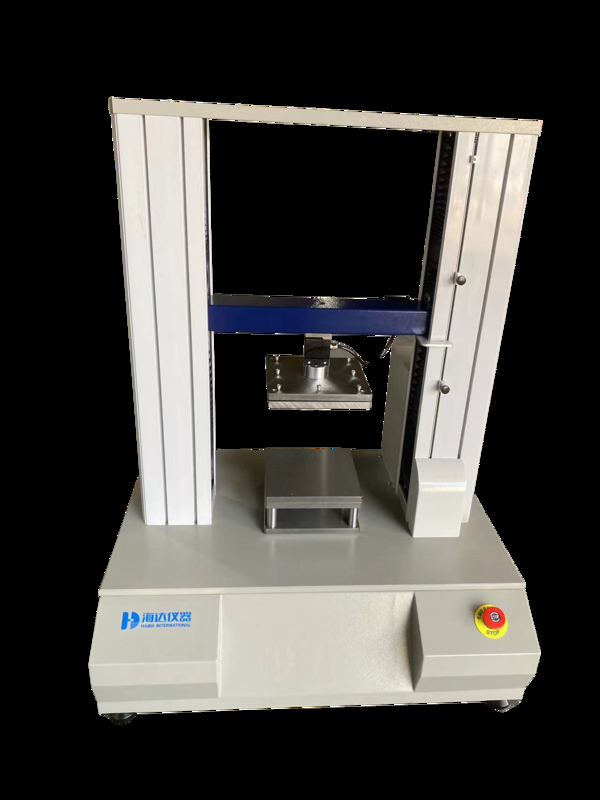

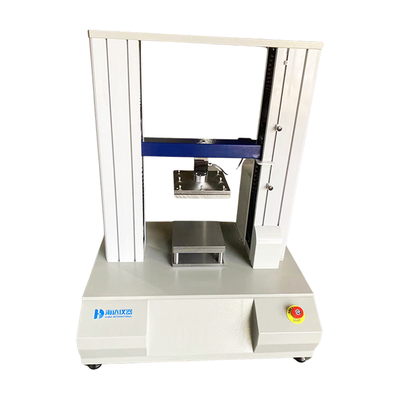

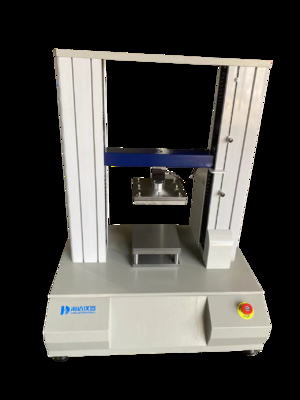

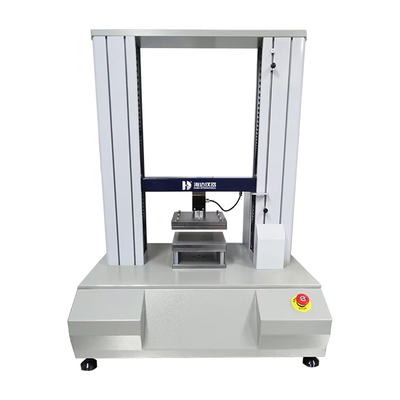

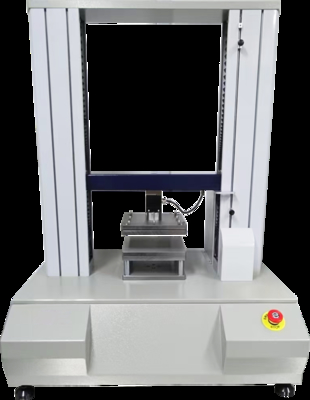

EQUIPMENT DETAILS OF 5077-HD BOTTLE COMPRESSION TEST MACHINE
PRODUCT DESCRIPTION

This instrument is suitable for various carbonated beverage bottles, mineral water bottles, plastic bottles, cans, composite cans, etc. to perform vertical pressure strength, top pressure strength and other performance tests. The instrument adopts a ball screw transmission system, which can achieve stepless speed regulation.

It is mainly used for vertical pressure tests of various volumetric bottles. Users only need to place the sample between the fixtures, and the intelligent vertical pressure tester will complete the entire test process. Professional automatic testing software records the entire test process curve. It is a must-have test instrument for various quality inspection agencies, beverage manufacturers, and packaging material manufacturers.

TEST STANDARD

ISO1924/2, QB/T1670-92, GB/T2914, GB/T 453

GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 1240 x 840x1320m

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 180kg

MAIN FEATURES
  • Double-column ball screw drive to ensure the high-precision and stable operation of the instrument;
  • The force value test system provides force value accuracy better than 1.0 level, and the test data is accurate;
  • The system is embedded with a USB interface or network port, which is convenient for data transmission and external access of the system.
  • Test speed can be adjusted in the software to adapt different test requirements from customers.
TECHNICAL PARAMETERS
Item Description
Capacity 500kg, imported load cell
Load resolution 1/250,000
Load Precision Within ± 0.5%
Motor 400W Panasonic servo motor
Operation Mode Controlled by PC with software, Windows 10 operation
Test Speed 0.1-500mm/min adjustable
Max. Stroke 600mm (excluding fixture)
Test unit gf/kgf/N/kN/lbf/T
Dimensions (L*W*H)790 x 610 x 1100mm
Weight Approx. 170 kg
Power 1∮, 220V, 500W
The Introduction of Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
