Accurate Bottle Axis Deviation Tester For Verticality Measurement

Accurate Bottle Axis Deviation Tester For Verticality Measurement
Accurate Bottle Axis Deviation Tester For Verticality Measurement Accurate Bottle Axis Deviation Tester For Verticality Measurement Accurate Bottle Axis Deviation Tester For Verticality Measurement Accurate Bottle Axis Deviation Tester For Verticality Measurement

बड़ी छवि :  Accurate Bottle Axis Deviation Tester For Verticality Measurement

उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Haida
प्रमाणन: CE、ISO
मॉडल संख्या: 5078-HD
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: राल फाइबर और पीपी फिल्म के साथ संरक्षित प्रत्येक सेट, फिर ऑपरेशन मैन के साथ मजबूत लकड़ी के मामले में
प्रसव के समय: आदेश की पुष्टि के 20 दिन बाद
भुगतान शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता: प्रति माह 300 सेट

Accurate Bottle Axis Deviation Tester For Verticality Measurement

वर्णन
समारोह: संपीड़न परीक्षण, पेपर ट्यूब कंप्रेसिव स्ट्रेंथ टेस्ट, फट टेस्टर, तन्यता परीक्षण, पेपर टेस्ट इंस्ट्रू नाम: पेपर कप ट्यूब कंप्रेसिव स्ट्रेंथ टेस्टर, पेपर टेस्टिंग इंस्ट्रूमेंट पेपर जीएसएम परीक्षक/ फटने वाली श
प्रदर्शन: एलसीडी, डिजिटल प्रदर्शन यूनिट स्विच: केजीएफ, एन। (वैकल्पिक), एलबीएफ
परीक्षण गति: 10 ~ 200 मिमी/मिनट आयाम: 360*264*400 मिमी, 70*34*60 सेमी, 85*65*80 सेमी
माप -सीमा: 250-5600 kPa, 10 ~ 1000mn प्रदर्शन विधा: एलसीडी डिस्प्ले, डिजिटल मोड
डिजाइन मानदंड: आईएसओ 2248, एएसटीएम-डी 2210, टप्पी टी 403, जीबी/टी 4857-92, जेआईएस Z0202-87
प्रमुखता देना:

bottle axis deviation tester

,

Accurate Bottle Axis Deviation Tester

Bottle Axis Deviation Tester
Key Features
  • Precision measurement of bottle container vertical deviation
  • Essential for quality control in food, cosmetics, and pharmaceutical industries
  • Four-claw self-centering chuck with high concentricity
  • Adjustable height and orientation for various bottle types
  • Digital LCD display with multiple unit options
  • Computer connectivity for data analysis (optional)
Technical Specifications
Parameter Value
Sample Diameter Positive claw 3-55mm, reverse claw 55-145mm
Centering Chuck Four-claw/three-claw optional
Measuring Range 0-12.7mm
Resolution 0.001mm
Indication Error ±0.005mm
Measurement Error ≤0.05mm
Measurable Height 5mm-400mm
Weight 20kg
Dimensions 330mm × 240mm × 240mm
Testing Principle

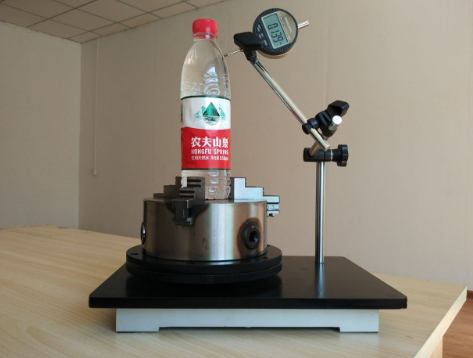

The bottle bottom is fixed on the rotating disk of the horizontal plate, with the bottle mouth contacting the micrometer. Rotating 360° reveals maximum and minimum values, with 1/2 of their difference being the vertical axis deviation value.

Compliance Standards
  • QB2357
  • QB/T1868
  • YY 0056
  • YBB 00012012
  • GBT 8452
  • GB 2637
  • YBB 00332002
  • YBB 00042012
  • YBB 00052012
Applications

Ideal for bottle manufacturers, quality control departments, and research institutions in food, cosmetics, pharmaceutical, and packaging industries.

Accurate Bottle Axis Deviation Tester For Verticality Measurement 0
About Haida

Haida products are widely used across paper goods, packaging, printing, adhesive tapes, footwear, electronics, plastics, and rubber industries. Our instruments comply with UL, ASTM, JIS, GB, and ISO standards, serving research institutions and quality inspection agencies worldwide.
