उत्पाद विवरण:
|
| समारोह: | संपीड़न परीक्षण, पेपर ट्यूब कंप्रेसिव स्ट्रेंथ टेस्ट, फट टेस्टर, तन्यता परीक्षण, पेपर टेस्ट इंस्ट्रू | नाम: | पेपर कप ट्यूब कंप्रेसिव स्ट्रेंथ टेस्टर, पेपर टेस्टिंग इंस्ट्रूमेंट पेपर जीएसएम परीक्षक/ फटने वाली श |
|---|---|---|---|
| प्रदर्शन: | एलसीडी, डिजिटल प्रदर्शन | यूनिट स्विच: | केजीएफ, एन। (वैकल्पिक), एलबीएफ |
| परीक्षण गति: | 10 ~ 200 मिमी/मिनट | आयाम: | 360*264*400 मिमी, 70*34*60 सेमी, 85*65*80 सेमी |
| माप -सीमा: | 250-5600 kPa, 10 ~ 1000mn | प्रदर्शन विधा: | एलसीडी डिस्प्ले, डिजिटल मोड |
| डिजाइन मानदंड: | आईएसओ 2248, एएसटीएम-डी 2210, टप्पी टी 403, जीबी/टी 4857-92, जेआईएस Z0202-87 | ||
| प्रमुखता देना: | Digital Display Tube Compressive Tester,LCD Paper Tube Compressive Tester,Paper Tube Compressive Strength Tester |
||
| Attribute | Value |
|---|---|
| Function | Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument |
| Name | Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, paper testing instrument |
| Display | LCD, Digital display |
| Units switch | Kgf, N. (Optional), Lbf |
| Testing speed | 10 ~ 200 mm/min |
| Dimension | 360*264*400mm, 70*34*60 cm, 85*65*80cm |
| Measuring range | 250-5600 Kpa, 10 ~ 1000mN |
| Display mode | LCD display, digital mode |
| Design criteria | ISO 2248, ASTM-D2210, TAPPI T403, GB/T4857-92, JIS Z0202-87 |

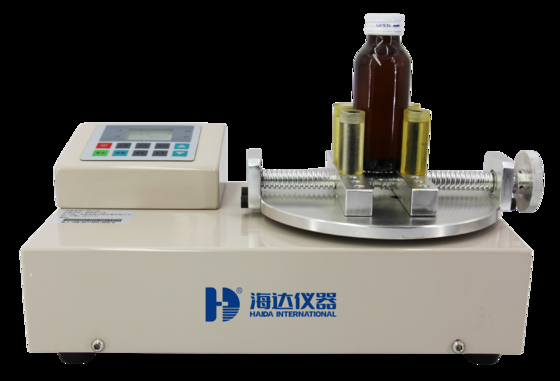

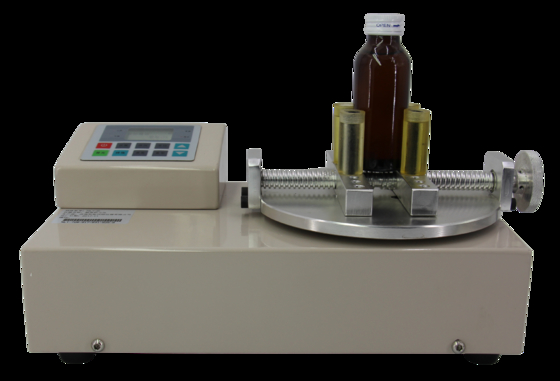

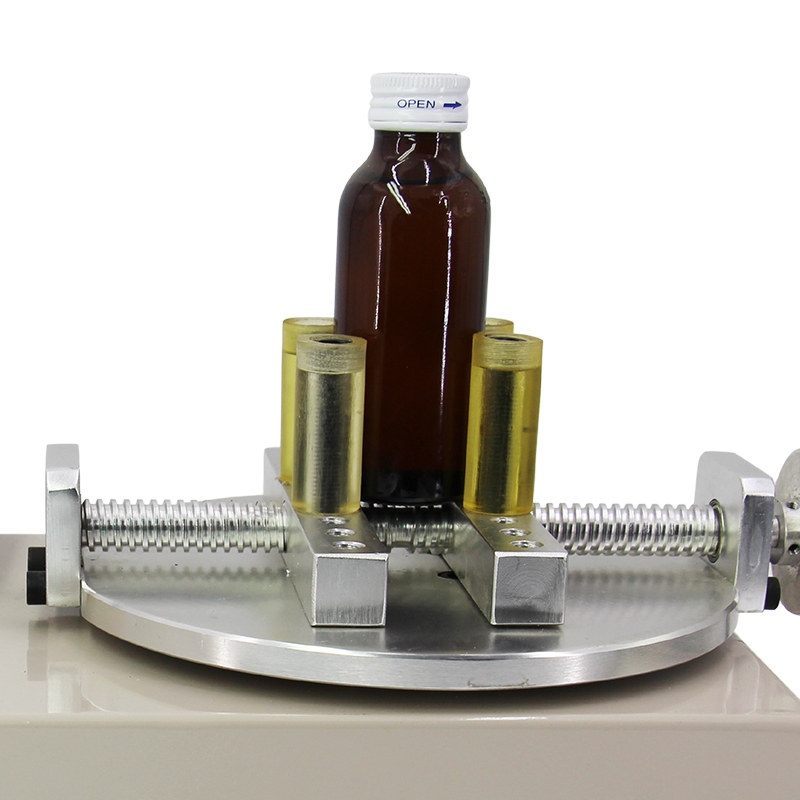

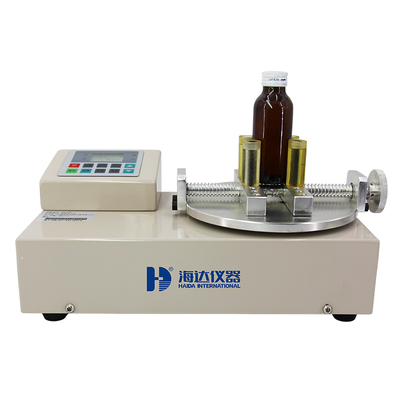

The 5079-HD Bottle Capping Torque Tester is designed for precise torque measurement in the pharmaceutical, food and beverage, and filling industries. It accurately tests the opening torque of various packaging products including bottles, hoses, and nozzle closures.
| Item | Description |
|---|---|
| Measuring range | 0～99ib.in |
| Resolution | 0.001 Nm |
| Accuracy | ±0.5% |
| Display mode | Touch screen; LCD display |
| Unit | N.m; kg.cm; ib.in; N.cm |
| Clamping range | Ф25mm～Ф170mm (Diameter) |
| Power supply | 5V rechargeable battery AC220V 50HZ power adapter |
| Data output method | Micro printer, optional PC output |
| Save quantity | 1～99 |
| Machine size | 330*200*200mm |
| Weight | 15 KG |
| Design standard | GB/T 17876, ASTM D 2063, ASTM D 3198, ASTM D 3474 |
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
