उत्पाद विवरण:
|
| समारोह: | संपीड़न परीक्षण, पेपर ट्यूब कंप्रेसिव स्ट्रेंथ टेस्ट, फट टेस्टर, तन्यता परीक्षण, पेपर टेस्ट इंस्ट्रू | नाम: | पेपर कप ट्यूब कंप्रेसिव स्ट्रेंथ टेस्टर, पेपर टेस्टिंग इंस्ट्रूमेंट पेपर जीएसएम परीक्षक/ फटने वाली श |
|---|---|---|---|
| प्रदर्शन: | एलसीडी, डिजिटल प्रदर्शन | यूनिट स्विच: | केजीएफ, एन। (वैकल्पिक), एलबीएफ |
| स्टील बॉल: | 16 मिमी * 20 | आवृति सीमा: | 60-300 राउंड/मिनट एडजस्टेबल |
| ड्राइव मोड: | विद्युत चालित | कुल वजन: | 120 किलो |
| रंग: | वैकल्पिक | क्लैंपिंग गति: | 50-300 मिमी / मिनट |
| सॉफ़्टवेयर: | टीएम 2101 | आयाम: | 530 (एल)* 490 (डी)* 960 (एच) मिमी |
| परीक्षण गति: | 12.7मिमी/मिनट | घर्षण गति: | 85 |
| बल संकल्प: | अधिकतम परीक्षण बल एफएस के 1/500000 | शक्ति: | एसी 220 वी ， 2.6 ए |
| उपयोग: | पैकेजिंग सामग्री | प्लाईवुड का आकार: | H48in * D48in |
| पत्तन: | 400 ~ 1500 मिमी | ||
| प्रमुखता देना: | Paper Packaging Impact Tester,Digital Pendulum Impact Tester,Precision Digital Pendulum Impact Tester |
||

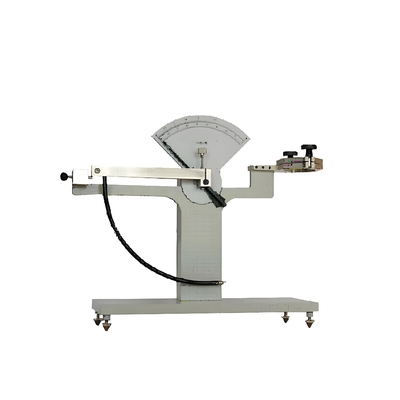

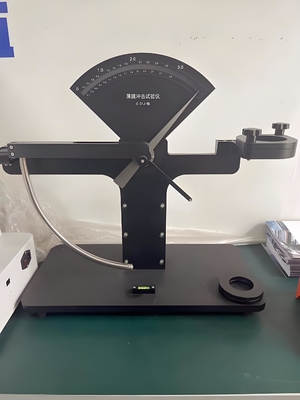

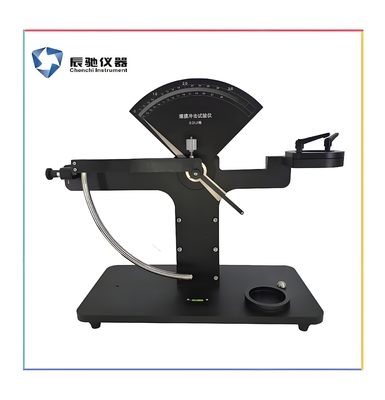

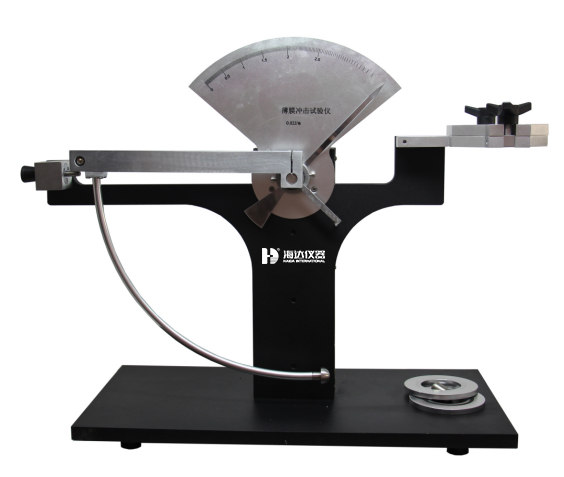

The 5086-HD Film Pendulum Impact Tester measures the pendulum impact resistance of plastic films, sheets, and composite films using a standard pendulum head and weighted pendulum arm. Ideal for testing impact toughness of various packaging materials including food and medicine packaging films, metal foils, and paper composites.
| Attribute | Value |
|---|---|
| Function | Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test |
| Display | LCD, Digital display |
| Units switch | Kgf, N. (Optional), Lbf |
| Steel Ball | 16mm * 20 |
| Frequency Range | 60-300 round/min adjustable |
| Drive Mode | Power-driven |
| Gross Weight | 120kg |
| Clamping Speed | 50-300mm/min |
| Test Speed | 12.7mm/min |
| Force Resolution | 1/500000 of the maximum test force fs |
| Power | AC 220V，2.6A |
| Dimensions | 530(L)*490(D)*960(H)mm |
| Parameter | Specification |
|---|---|
| Capacity | 3J |
| Scale value | 0.01J |
| Pendulum swing radius | R280 mm |
| Pendulum angle | 90° |
| Impact speed | 2.5m/S |
| Impact head size | Φ12.7 mm |
| Sample holder diameter | Φ60, Φ89mm |
| Sample size | 100 X 100 mm |
Complies with GB/T8809 and ASTM D3420 testing standards.
Ideal for testing impact resistance of various materials including PE/PP composite films, aluminized films, aluminum-plastic composite films, nylon films, plastic rubber films, metal foil materials, and paper/paperboard composites used in packaging applications.
The instrument uses a semi-spherical punch to impact and break the sample at a controlled speed, measuring the energy consumed during impact to evaluate the material's anti-pendulum impact energy value.
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
