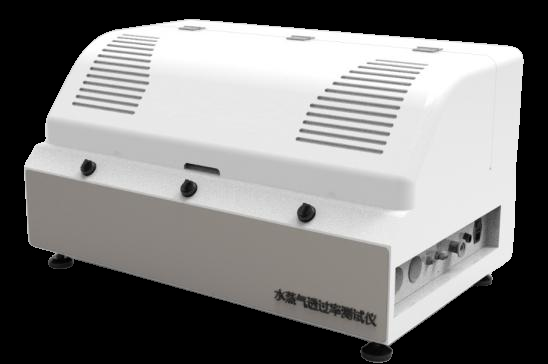

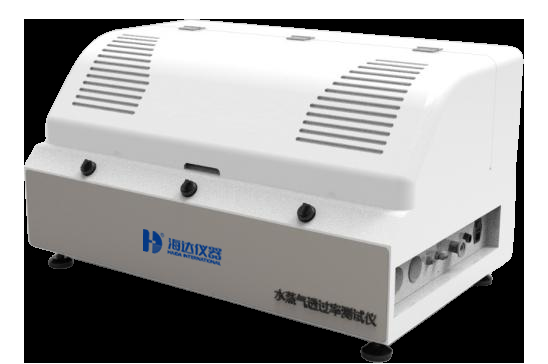

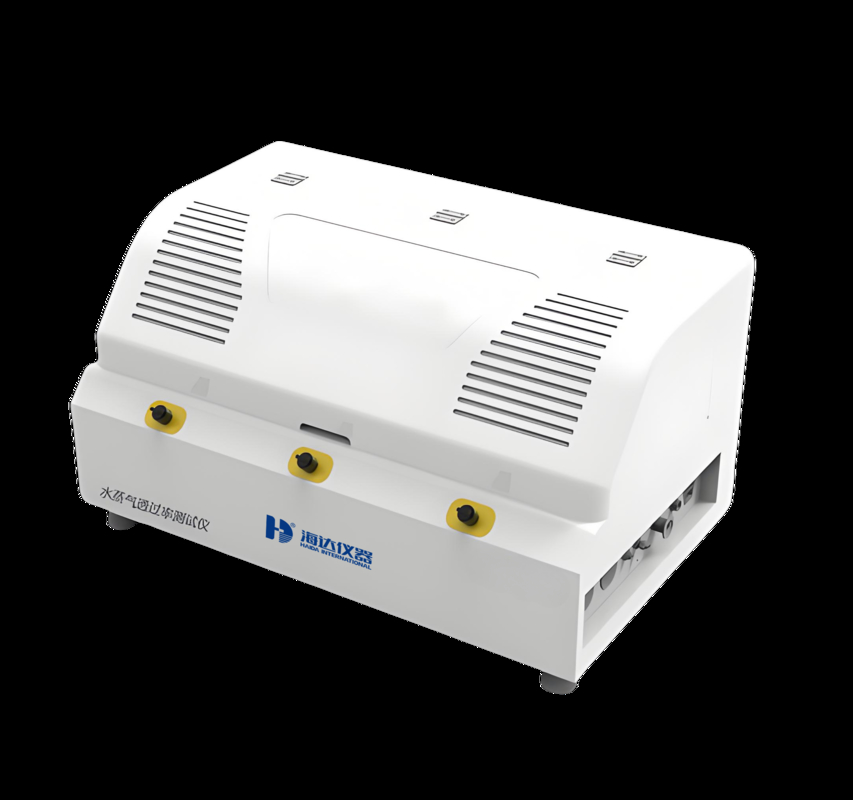

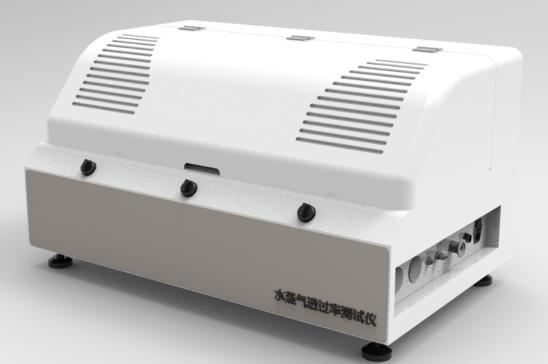

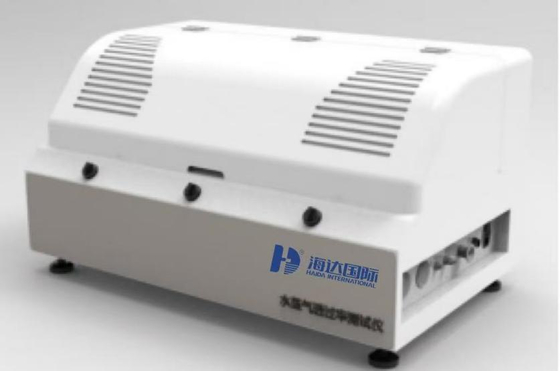

Infrared Water Vapor Permeability Tester for Packaging Materials

Infrared Water Vapor Permeability Tester for Packaging Materials
Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials

बड़ी छवि :  Infrared Water Vapor Permeability Tester for Packaging Materials

उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Haida
प्रमाणन: CE、ISO
मॉडल संख्या: 5098-HD
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: राल फाइबर और पीपी फिल्म के साथ संरक्षित प्रत्येक सेट, फिर ऑपरेशन मैन के साथ मजबूत लकड़ी के मामले में
प्रसव के समय: आदेश की पुष्टि के 20 दिन बाद
भुगतान शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता: प्रति माह 300 सेट

Infrared Water Vapor Permeability Tester for Packaging Materials

वर्णन
समारोह: संपीड़न परीक्षण, पेपर ट्यूब कंप्रेसिव स्ट्रेंथ टेस्ट, फट टेस्टर, तन्यता परीक्षण, पेपर टेस्ट इंस्ट्रू नाम: पेपर कप ट्यूब कंप्रेसिव स्ट्रेंथ टेस्टर, पेपर टेस्टिंग इंस्ट्रूमेंट पेपर जीएसएम परीक्षक/ फटने वाली श
प्रदर्शन: एलसीडी, डिजिटल प्रदर्शन यूनिट स्विच: केजीएफ, एन। (वैकल्पिक), एलबीएफ
प्रदर्शन विधा: एलसीडी डिस्प्ले, डिजिटल मोड कंपन विधा: रेसिप्रोकेटिंग
आंदोलन अभियान: बॉल स्क्रू और सर्वो मोटर अनुकूलित समर्थन: OEM ODM
प्रयोग: कागज परीक्षण यंत्र विशेषताएँ: उच्च परिशुद्धता, आसान संचालन, विश्वसनीय प्रदर्शन
नियंत्रक: पीएलसी (प्रोग्रामेबल लॉजिक कंट्रोलर) बूंद परीक्षण: नमूने के कोने, किनारे, फलक
प्रदर्शन विधि: अंकीय प्रदर्शन समय प्रदर्शन: परीक्षण के दौरान समय प्रदर्शित करने के लिए
संयुक्त राज्य अमेरिका क्षेत्र: कुकवेयर डिजाइन मानदंड: EN71 ANSI, UL, ASTM ISTA
नियंत्रण प्रणाली: पीएलसी क्रमादेशित नियंत्रण मूल: चीन
परीक्षण विधियाँ: इलेक्ट्रॉनिक, यांत्रिक, मैनुअल वज़न: अनुकूलन
ट्रांसमिशन मोड: वायवीय डिवाइस + reducer + रिलीज़ स्कैन विधा: एक लाइन
उपयोग: पैकेजिंग सामग्री
प्रमुखता देना:

Infrared Permeability Tester

,

Packaging Materials Vapor Permeability Tester

,

Packaging Materials Permeability Tester

EQUIPMENT DETAILS 5098-HD WATER VAPOR PERMEABILITY TESTER (INFRARED METHOD)
Product Specifications
Attribute Value
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display LCD, Digital display
Units switch Kgf, N. (Optional), Lbf
Control System PLC Programmed Control
Test Methods Electronic, mechanical, manual
Design Criteria EN71 ANSI, UL, ASTM ISTA
Features High precision, easy operation, reliable performance
Product Description
This infrared moisture analysis-based tester provides wide-range, high-efficiency water vapor transmission rate testing for medium and high water vapor barrier materials. It is suitable for testing plastic films, composite films, high barrier materials, backboards, sheets, paper, metal foils, and various packaging materials across industries including food, medicine, medical equipment, daily chemicals, and photovoltaic electronics.
Test Standards
GBT 26253, ISO 15106-2, ASTM F1249, TAPPI T557, JIS K7129, ISO 15106-3, DIN 53122-2, YBB 00092003
Key Features
  • Laser pulse modulated infrared sensor with long optical path absorption for higher measurement accuracy
  • Three independent test chambers for simultaneous testing of identical or different samples
  • Computer-controlled fully automated test process with one-button operation
  • High-quality components ensure instrument stability and reliability
  • Automatic test execution with parameter settings and result saving
  • Real-time test status monitoring with intelligent software for data analysis
  • Self-detection capabilities and power-off data storage protection
  • Precise automated temperature and humidity control for various test conditions
  • Multiple test process judgment modes (manual, proportional, cyclic)
  • Expandable test range for large transmittance testing requirements
Technical Specifications
Measuring range (membrane) 0.01~40 g/(m²*day) (standard)
0.1~1000 g/(m²*day) (optional)
Resolution 0.001 g/(m²*day)
Number of samples 1~3 pieces
Sample size φ110mm
Temperature control range 5℃~65℃ (constant temperature water bath)
Temperature control accuracy ±0.1℃
Humidity control range 0% RH, 5%~90%RH, 100%RH
Humidity control accuracy ±1%RH
Industry Applications
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They comply with UL, ASTM, JIS, GB, and ISO standards.
Infrared Water Vapor Permeability Tester for Packaging Materials 0
Infrared Water Vapor Permeability Tester for Packaging Materials 1
Infrared Water Vapor Permeability Tester for Packaging Materials 2
