Paper Cup Tube Compressive Strength Tester with Digital Display

Paper Cup Tube Compressive Strength Tester with Digital Display
Paper Cup Tube Compressive Strength Tester with Digital Display Paper Cup Tube Compressive Strength Tester with Digital Display

बड़ी छवि :  Paper Cup Tube Compressive Strength Tester with Digital Display

उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Haida
प्रमाणन: CE、ISO
मॉडल संख्या: 5099-HD
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: राल फाइबर और पीपी फिल्म के साथ संरक्षित प्रत्येक सेट, फिर ऑपरेशन मैन के साथ मजबूत लकड़ी के मामले में
प्रसव के समय: आदेश की पुष्टि के 20 दिन बाद
भुगतान शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता: प्रति माह 300 सेट

Paper Cup Tube Compressive Strength Tester with Digital Display

वर्णन
समारोह: संपीड़न परीक्षण, पेपर ट्यूब कंप्रेसिव स्ट्रेंथ टेस्ट, फट टेस्टर, तन्यता परीक्षण, पेपर टेस्ट इंस्ट्रू नाम: पेपर कप ट्यूब कंप्रेसिव स्ट्रेंथ टेस्टर, पेपर टेस्टिंग इंस्ट्रूमेंट पेपर जीएसएम परीक्षक/ फटने वाली श
प्रदर्शन: एलसीडी, डिजिटल प्रदर्शन यूनिट स्विच: केजीएफ, एन। (वैकल्पिक), एलबीएफ
प्रदर्शन विधा: एलसीडी डिस्प्ले, डिजिटल मोड कंपन विधा: रेसिप्रोकेटिंग
आंदोलन अभियान: बॉल स्क्रू और सर्वो मोटर अनुकूलित समर्थन: OEM ODM
प्रयोग: कागज परीक्षण यंत्र विशेषताएँ: उच्च परिशुद्धता, आसान संचालन, विश्वसनीय प्रदर्शन
नियंत्रक: पीएलसी (प्रोग्रामेबल लॉजिक कंट्रोलर) बूंद परीक्षण: नमूने के कोने, किनारे, फलक
प्रदर्शन विधि: अंकीय प्रदर्शन समय प्रदर्शन: परीक्षण के दौरान समय प्रदर्शित करने के लिए
संयुक्त राज्य अमेरिका क्षेत्र: कुकवेयर डिजाइन मानदंड: EN71 ANSI, UL, ASTM ISTA
नियंत्रण प्रणाली: पीएलसी क्रमादेशित नियंत्रण मूल: चीन
परीक्षण विधियाँ: इलेक्ट्रॉनिक, यांत्रिक, मैनुअल वज़न: अनुकूलन
ट्रांसमिशन मोड: वायवीय डिवाइस + reducer + रिलीज़ स्कैन विधा: एक लाइन
उपयोग: पैकेजिंग सामग्री
प्रमुखता देना:

Tube Compressive Strength Tester

,

Digital Display Compressive Strength Tester

,

Paper Cup Tube Compressive Strength Tester

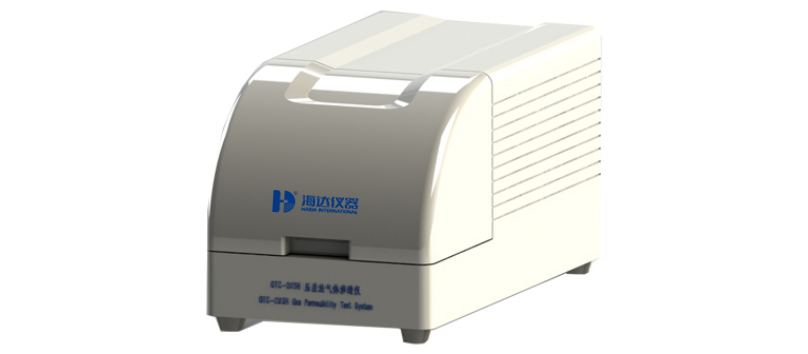

5099-HD Oxygen Transmission Rate Tester
Product Overview
This advanced oxygen transmission rate tester utilizes coulometric oxygen analysis sensors and isobaric test principles to provide high-efficiency oxygen permeability testing for materials with varying gas barrier properties. The system offers precise temperature, humidity, and flow rate control with exceptional test sensitivity and repeatability.
Key Attributes
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display LCD, Digital display with unit switching (Kgf, N, Lbf)
Control System PLC (Programmable Logic Controller)
Movement Drive Ball screw and servo motor
Vibration Mode Reciprocating
Design Standards EN71, ANSI, UL, ASTM, ISTA
Test Methods Electronic, mechanical, manual
Transmission Mode Pneumatic device + reducer + release
Technical Features
  • Three independent test chambers for simultaneous testing of different samples
  • Imported high-precision sensors ensure exceptional test accuracy
  • Advanced water bath temperature control system with wide temperature range
  • Independent control of upper/lower chambers and sensors for result accuracy
  • Sealed pipeline system reduces system errors for more precise results
  • Anti-leakage sample structure design for stable sealing
  • Multiple test modes (manual, proportional, cyclic) for various scenarios
  • Expandable USB interfaces and network ports for data access
  • Self-detection capabilities ensure continuous operational status
  • Power-off automatic save function prevents data loss
Technical Specifications
Measuring Range Film: 0.01-200cm³/m²*24h (conventional)
Container: 0.00025-1 cm³/pkg*24h (optional)
Resolution 0.001 cm³/m²•24h
Temperature Control 5°C to 85°C (±0.1°C accuracy)
Humidity Control 0% RH, 5%-90%RH, 100%RH (±1%RH accuracy)
Sample Capacity 1-3 pieces (independent data)
Transmission Area 50 cm²
Max Sample Thickness ≤3mm
Carrier Gas 99.999% high purity nitrogen (user-provided)
Dimensions 740mm (L) × 415mm (W) × 430mm (H)
Weight 50Kg
Power Supply AC 220V 50Hz
Compliance Standards
GB/T 19789, ISO 15105-2, ASTM D3985, ASTM F2622, ASTM F1927, JIS K7126-2, YBB 00082003
Applications
Ideal for oxygen permeability testing of films, sheets, paper, and packaging materials in food, pharmaceuticals, medical devices, cosmetics, photovoltaic electronics, and related industries.
Product Images
Paper Cup Tube Compressive Strength Tester with Digital Display 0 Paper Cup Tube Compressive Strength Tester with Digital Display 1 Paper Cup Tube Compressive Strength Tester with Digital Display 2
About Haida
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
