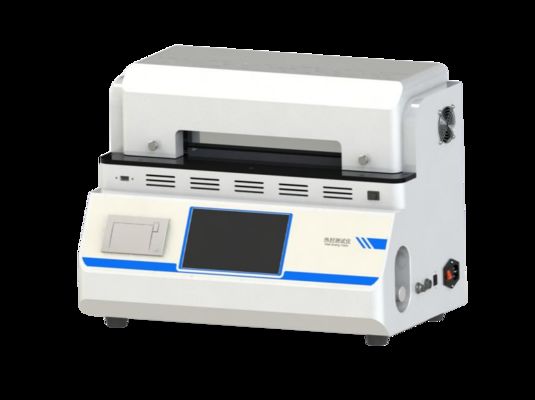

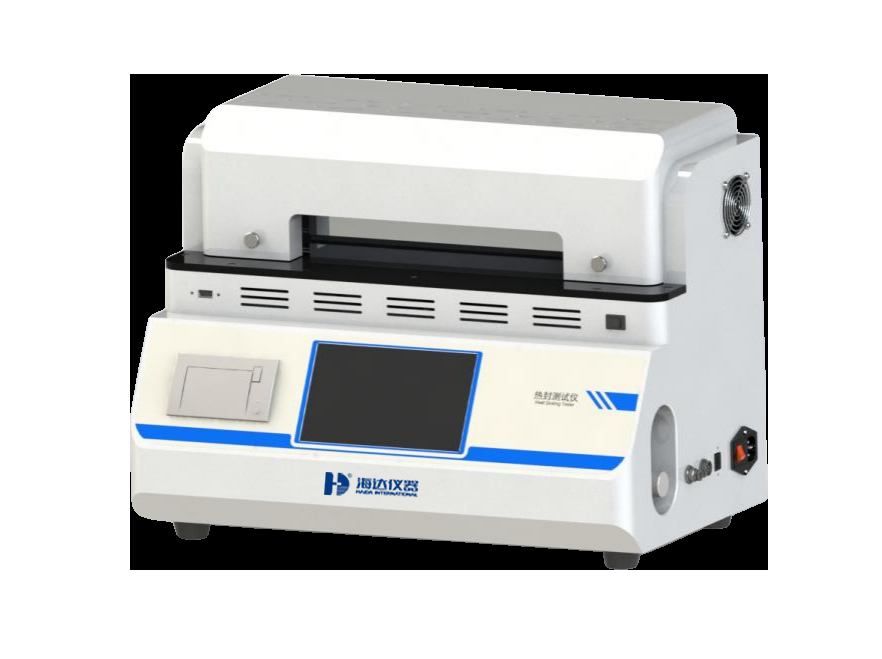

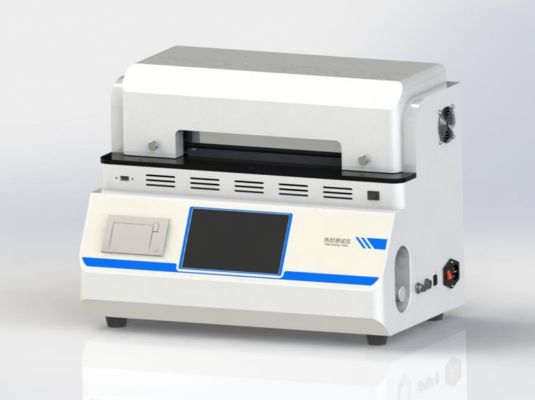

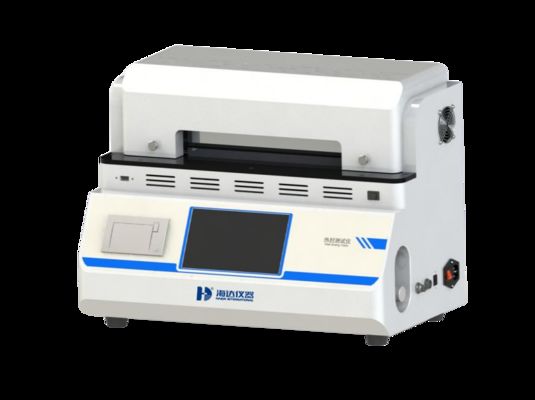

EQUIPMENT DETAILS OF 5089-HD HEAT SEALING TESTER

EQUIPMENT DETAILS OF 5089-HD HEAT SEALING TESTER

PRODUCT DECRIPTION

It adopts the testing principle of heat-pressing sealing method and is suitable for measuring the heat-sealing pressure, heat-sealing temperature and heat-sealing time of flexible packaging composite films, plastic film substrates, coated paper and other heat-sealing composite films. It is an indispensable testing instrument in laboratories, scientific research and online production. It is also called heat-sealing strength tester, heat-sealing performance tester and heat-sealing strength tester.

TEST STANDARD

ASTM F2029, QB/T 2358, YBB 00122003

PRINCIPLE

The instrument adopts the heat-pressing sealing method. The sample to be sealed is placed between the upper and lower heat-sealing heads. The sample is sealed at the preset temperature, pressure and time. By heat-sealing the sample under different test conditions such as temperature, pressure and time, the appropriate packaging process for the sample can be obtained.

FEATURE

1. Industrial-grade high-definition color resistive touch screen, menu-based interface, conv1. Industrial-grade high-definition color resistive touch screen, menu-based interface, convenient for users to control and display real-time test data;

2. The heat sealing temperature is controlled by digital PID, which effectively improves the temperature control accuracy and heating rate;

3. Aluminum potting armor type heat sealing head design ensures the uniformity of heating of the whole heat sealing surface;

4. The design of the lower-mounted double-cylinder synchronization circuit not only ensures the stability in the operation of the instrument, but also effectively avoids the pressure fluctuation caused by heat;

5. The upper and lower heat sealing heads can be independently temperature-controlled, and the ultra-long heat sealing surface design meets the user's large-area sample or multiple samples for simultaneous testing;

6. Supports customized requirements for various heat sealing surface forms to meet the personalized needs of different customers;

7. Two test start modes, manual and foot pedal, and anti-scalding safety design, can effectively ensure the convenience and safety of users;

8. All system accessories use well-known brand components to ensure the accuracy and stability of the system;

9. Imported high-speed and high-precision sampling chips to ensure the real-time and accuracy of test data;

10. Multi-level user authority settings, test data integrity and other functions to meet GMP-related test requirements;

11. Support historical data for quick viewing;

12. The equipment is equipped with a micro printer to print test data in real time;

13. Professional computer communication software (optional) can display the test process in real time and analyze and process group data ;

TECHNICAL PARAMETERS
