उत्पाद विवरण:
|
| Minimum Detection Limit: | Pb≤5ppm, Cd/Cr/Hg/Br≤2ppm, Cl≤50ppm | Peak Area Reproducibility: | < 0.5% RSD |
|---|---|---|---|
| Rsd: | ≤1.5% | Grating Lines: | 1800 |
| Detector: | Photomultiplier Tube | Detection Object: | Solid |
| Content Analysis Range: | 1ppm~99.99% | Test Object: | Powder, Solid, Liquid |
| Resolution: | 0.1nm | Test Time: | 100-300 seconds (adjustable) |
| Sensitivity: | 0.001 Abs | Cooling Rate: | < 3.5min (450˚C to 50˚C) |
| Analysis: | 4 phthalates in RoHS2.0 directive | Model: | 1234 |
| Spectral Bandwidth: | 0.1nm, 0.2nm, 0.4nm, 0.7nm, 1.0nm, 2.0nm | ||
| प्रमुखता देना: | RoHS Compliance Tester,Solid Object Analysis Condom Leak Tester,5108-HD Leak Tester |
||
| Attribute | Value |
|---|---|
| Minimum Detection Limit | Pb≤5ppm, Cd/Cr/Hg/Br≤2ppm, Cl≤50ppm |
| Peak Area Reproducibility | < 0.5% RSD |
| Rsd | ≤1.5% |
| Grating Lines | 1800 |
| Detector | Photomultiplier Tube |
| Detection Object | Solid |
| Content Analysis Range | 1ppm~99.99% |
| Test Object | Powder, Solid, Liquid |
| Resolution | 0.1nm |
| Test Time | 100-300 seconds (adjustable) |
| Sensitivity | 0.001 Abs |
| Cooling Rate | < 3.5min (450˚C to 50˚C) |
| Analysis | 4 phthalates in RoHS2.0 directive |
| Model | 1234 |
| Spectral Bandwidth | 0.1nm, 0.2nm, 0.4nm, 0.7nm, 1.0nm, 2.0nm |

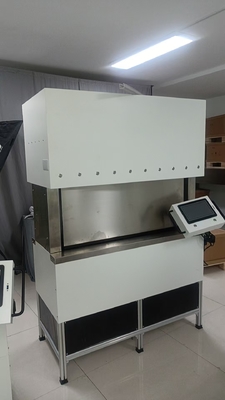

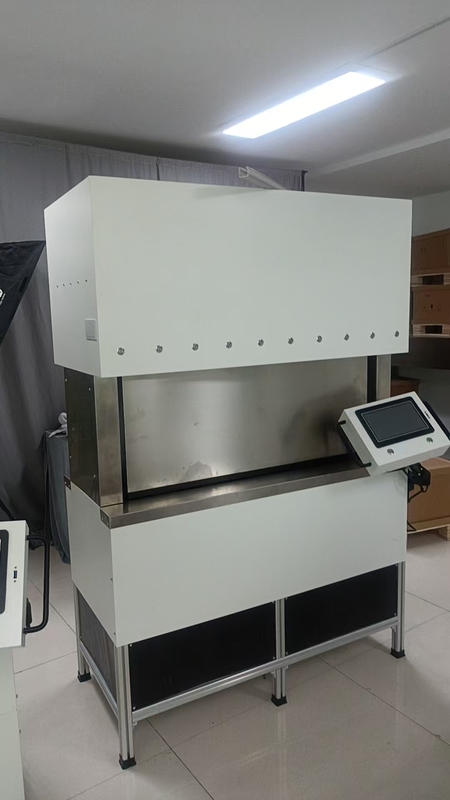

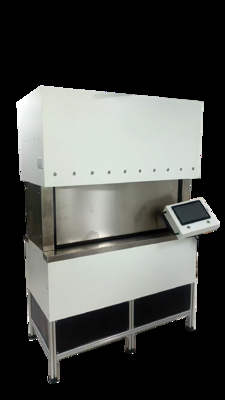

The condom electrical leak detector is designed for rubber sleeves and condom pinhole leakage testing, compliant with GB7544, ISO 4074, and ISO 25841 standards.
Electrical Inspection Method: Detects pinholes using electronic shielding. Intact condoms act as insulators, while those with pinholes complete the current circuit.
Visual Inspection Method: Involves filling condoms with water and manually observing for leaks.
| Item | Parameter |
|---|---|
| Test position | 10 |
| Water temperature | (10℃～40℃), time (10±2)s |
| Injection volume | (50mL～1000mL) ±10mL (automatic water injection, adjustable) |
| DC voltage | (10±0.1)V |
| Voltmeter accuracy | ±0.3mV |
| Precision resistance | (10±0.5)kΩ |
| Dimensions | 1000 mm (L) × 450 mm (W) × 1600 mm (H) |
| Weight | Approx. 180kg |
| Configuration | Main unit workstation, measuring electrode rod, male condom test heads, female condom leak test stand |
About Haida: Founded in 2004, Haida® is a market leader in testing equipment based in Dongguan, China. The company specializes in four main manufacturing series: Accelerated Environmental Series (AES), Universal Tensile Machine (UTM), Paper & Packaging (P&P), and Foam, Furniture & Optical (FFO), with additional expertise in textile, footwear, leather, luggage, baby carriage, toys, and optical testing equipment.
