उत्पाद विवरण:
|
| डिजाइन मानकों: | ASTM D646, JIS P8124, QB / T 1671 | प्रचालन पद्धति: | माइक्रो कंप्यूटर नियंत्रण |
|---|---|---|---|
| न्यूनतम रीडआउट: | 0.1 | विचलन छोड़ना: | ± 10 मिमी |
| भार संकल्प: | 1/250,000 | परीक्षण मानकों: | आईएसओ, एएसटीएम, तप्पी |
| बूंद परीक्षण: | नमूने के कोने, किनारे, फलक | रेटेड झुकने कोण: | ± 7.5 ° और ° 15 ° |
| प्रयोग: | पैकेजिंग परीक्षण | प्लाईवुड आकार: | H48in * d48in |
| संपीड़ित हवा: | 6 किलोग्राम/सेमी 2 | टेस्ट लोड विकल्प: | 55g, 175g, 275g |
| ड्राइव मोड: | विद्युत चालित | लोड सेल रिज़ॉल्यूशन: | 1/250,000 |
| प्रमुखता देना: | 5023-HD Diaper Liquid Penetration Tester,Liquid Penetration Tester,Nonwoven Fabrics Liquid Penetration Tester |
||
| Attribute | Value |
|---|---|
| Design Standards | ASTM D646, JIS P8124, QB / T 1671 |
| Operating Method | Microcomputer Control |
| Minimum Readout | 0.1 |
| Dropping Deviation | ±10mm |
| Load Resolution | 1/250,000 |
| Testing Standards | ISO, ASTM, TAPPI |
| Drop Test | Corners, edges, faces of sample |
| Rated Bending Angle | ± 7.5 ° and ± 15 ° |
| Usage | Packaging Testing |
| Plywood Size | H48in * D48in |
| Compressed Air | 6 kg/cm2 |
| Test Load Options | 55g, 175g, 275g |
| Drive Mode | Power-driven |
| Load Cell Resolution | 1/250,000 |

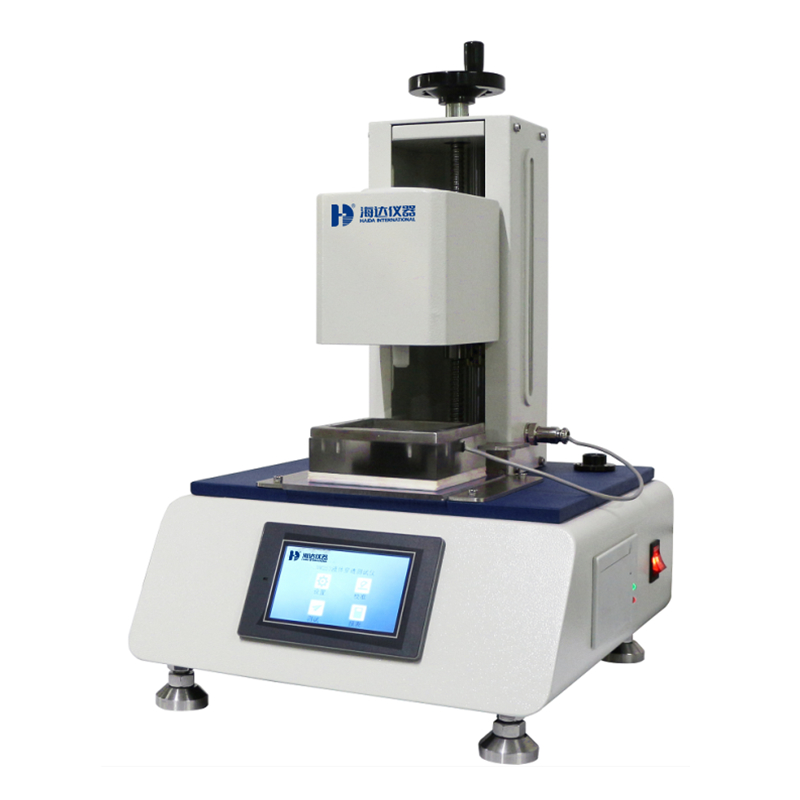

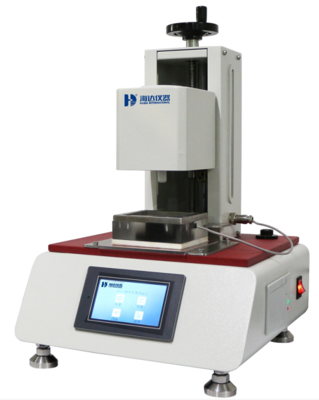

Designed for liquid penetration testing of thin nonwoven fabrics used in sanitary products including sanitary napkins, diapers, and other covering materials.
FZ/T60017; GB/T24218.8; GB/T24218.13; GB/T24218.14
| Item | Description |
|---|---|
| Burette capacity | 50ml |
| Control liquid flow rate | 25ml flows in (3.5±0.25)s |
| Distance between funnel tip and sample | Adjustable |
| Substrate material | Plexiglass |
| Penetrating disc size | 100 x 100 x 25mm |
| Sample size | 125 x 125mm |
| Timer | 0～9999.99s, accuracy: 0.01s |
| Total weight of penetrating disc | 500g |
| Power supply | AC220V±10％ 50HZ |
| Power | 50W |
| Weight | 5Kg |
| Size | 240 x 400 x 320mm |
