उत्पाद विवरण:
|
| डिजाइन मानकों: | ASTM D646, JIS P8124, QB / T 1671 | प्रचालन पद्धति: | माइक्रो कंप्यूटर नियंत्रण |
|---|---|---|---|
| न्यूनतम रीडआउट: | 0.1 | विचलन छोड़ना: | ± 10 मिमी |
| भार संकल्प: | 1/250,000 | परीक्षण मानकों: | आईएसओ, एएसटीएम, तप्पी |
| बूंद परीक्षण: | नमूने के कोने, किनारे, फलक | रेटेड झुकने कोण: | ± 7.5 ° और ° 15 ° |
| प्रयोग: | पैकेजिंग परीक्षण | प्लाईवुड आकार: | H48in * d48in |
| संपीड़ित हवा: | 6 किलोग्राम/सेमी 2 | टेस्ट लोड विकल्प: | 55g, 175g, 275g |
| ड्राइव मोड: | विद्युत चालित | लोड सेल रिज़ॉल्यूशन: | 1/250,000 |
| प्रमुखता देना: | coefficient friction tester,Paper Packaging Testing Friction tester,coefficient friction Tester 5027-HD |
||

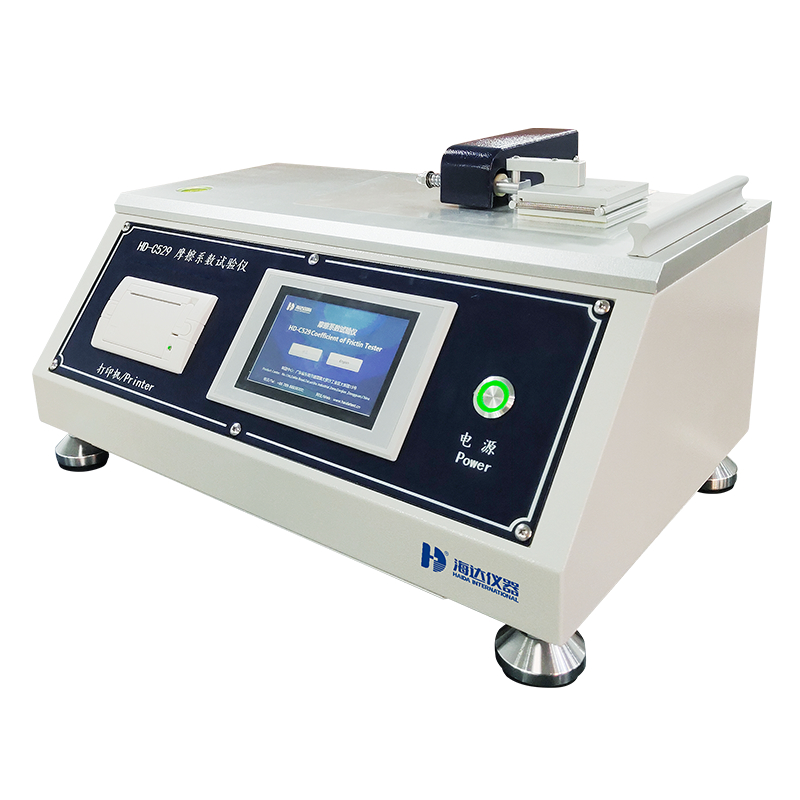

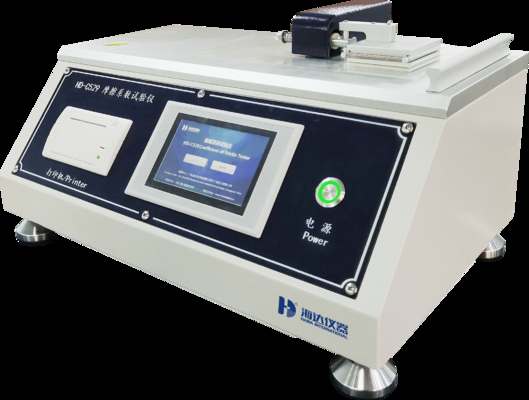

This tester complies with GB 10006-88 and ISO 8295-1986 standards for measuring dynamic and static friction coefficients of non-sticky plastic films and sheets (thickness < 0.2mm) when sliding on themselves or other materials. Suitable for paper, textiles, rubber, aluminum foil, printed materials, and screen protective films. The measured friction coefficient indicates product smoothness.
| Attribute | Value |
|---|---|
| Design Standards | ASTM D646, JIS P8124, QB/T 1671 |
| Operating Method | Microcomputer Control |
| Minimum Readout | 0.1 |
| Dropping Deviation | ±10mm |
| Load Resolution | 1/250,000 |
| Testing Standards | ISO, ASTM, TAPPI |
| Drop Test | Corners, edges, faces of sample |
| Rated Bending Angle | ±7.5° and ±15° |
| Usage | Packaging Testing |
| Plywood Size | H48in * D48in |
| Compressed Air | 6 kg/cm² |
| Test Load Options | 55g, 175g, 275g |
| Drive Mode | Power-driven |
| Specification | 5027-HD |
|---|---|
| Control mode | Touch screen control |
| Test stroke | 1-200mm |
| Test speed | 100±10mm/min (speed adjustable) |
| Slider weight | 200±2g (others can be customized) |
| Upper sample size | 63mm*63mm (L*W) |
| Lower sample size | 80mm*200mm (L*W) |
| Force test accuracy | ±0.02N |
| Measuring range | 0.001-5N (expandable) |
| Instrument dimensions | Approx. 490*320*210mm (L*W*H) |
| Usage environment | Indoor temperature 20±10℃, relative humidity <85% |
| Power supply | 1∮ AC220V |
| Machine weight | Approx. 18kg |
| Power | Approx. 350W |
The touch screen controls the stepper motor driver, which executes programmed movements. The motor drives the force test module for uniform linear motion. Samples are secured under the handle, and the system calculates friction coefficients during motion, with results printed upon completion.
