उत्पाद विवरण:
|
| डिजाइन मानकों: | ASTM D646, JIS P8124, QB / T 1671 | प्रचालन पद्धति: | माइक्रो कंप्यूटर नियंत्रण |
|---|---|---|---|
| न्यूनतम रीडआउट: | 0.1 | विचलन छोड़ना: | ± 10 मिमी |
| भार संकल्प: | 1/250,000 | परीक्षण मानकों: | आईएसओ, एएसटीएम, तप्पी |
| बूंद परीक्षण: | नमूने के कोने, किनारे, फलक | रेटेड झुकने कोण: | ± 7.5 ° और ° 15 ° |
| प्रयोग: | पैकेजिंग परीक्षण | प्लाईवुड आकार: | H48in * d48in |
| संपीड़ित हवा: | 6 किलोग्राम/सेमी 2 | टेस्ट लोड विकल्प: | 55g, 175g, 275g |
| ड्राइव मोड: | विद्युत चालित | लोड सेल रिज़ॉल्यूशन: | 1/250,000 |
| प्रमुखता देना: | Stick Viscosity Tester 5028-HD,Packaging Stick Viscosity Tester,Constant Temperature Stick Viscosity Tester |
||
| Attribute | Value |
|---|---|
| Design Standards | ASTM D646, JIS P8124, QB/T 1671 |
| Operating Method | Microcomputer Control |
| Minimum Readout | 0.1 |
| Dropping Deviation | ±10mm |
| Load Resolution | 1/250,000 |
| Testing Standards | ISO, ASTM, TAPPI |
| Drop Test | Corners, edges, faces of sample |
| Rated Bending Angle | ±7.5° and ±15° |
| Usage | Packaging Testing |
| Plywood Size | H48in * D48in |
| Compressed Air | 6 kg/cm² |
| Test Load Options | 55g, 175g, 275g |
| Drive Mode | Power-driven |

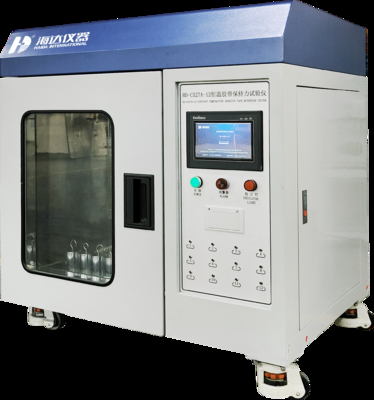

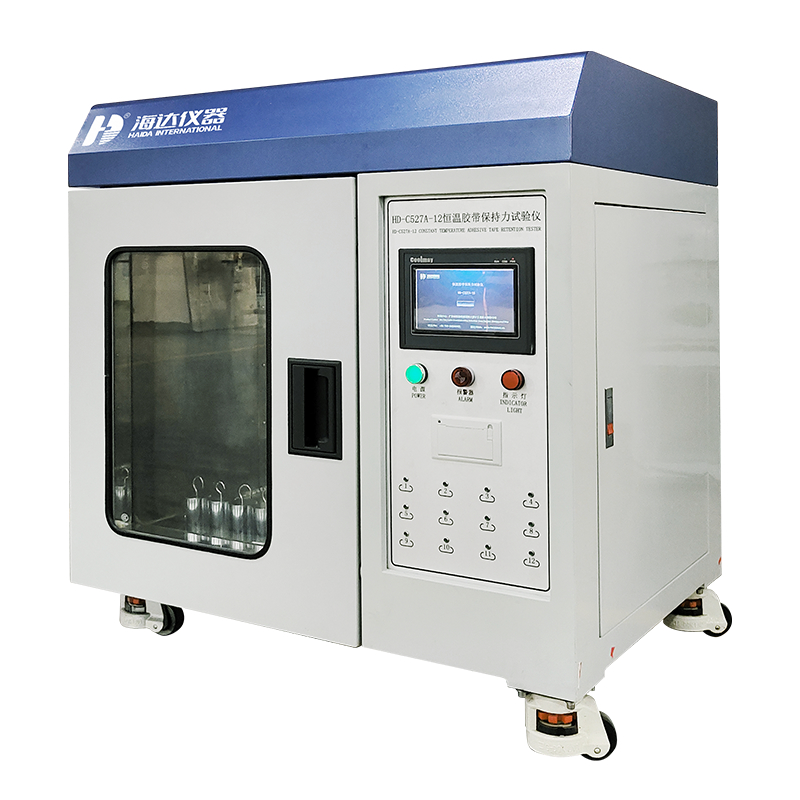

Designed and manufactured in accordance with GB 4851 (pressure-sensitive adhesive tape stickiness test method) and plaster adhesion test method standards. Suitable for testing pressure-sensitive adhesive tapes, self-adhesives, plaster, hot sol, and similar products.
| Feature | Specification |
|---|---|
| Number of test groups | 12 groups |
| Timing mode | PLC system setting program record |
| Test Indicator | Separate metal indicator light |
| Inner box lighting | 24W high temperature resistant lamp (can withstand 500°C) |
| Test temperature | Normal temperature~200°C |
| Temperature control mode | PLC system sets program to adjust temperature and constant temperature time |
| Temperature display | 0.1°C |
| Temperature control accuracy | ±1°C |
| Standard weight | 1000g±5g (including loading plate weight) |
| Heating method | Hot air circulation |
| Test steel plate | 150(L)*50(B)*2(D)mm |
| Test steel plate materials | SUS304 mirrored stainless steel sheet |
| Standard test plate roughness | Mirror 50nm±25nm |
| Safety device | Power-off protection for over-temperature and electric overload |
| Machine material | Internal SUS304# stainless steel plate, external high-grade steel plate with baked paint |
| Inner box size | 448*350*540mm (L*W*H) |
| Dimensions | 960*660*960mm (L*W*H) |
| Weight | Approximately 320kg |
| Power supply | AC220V 2100W |
