उत्पाद विवरण:
|
| सामग्री: | इस्पात | वैकल्पिक सुविधाएँ: | अनुकूलन योग्य भार क्षमता और आयाम |
|---|---|---|---|
| कीवर्ड: | फर्नीचर परीक्षण मशीन | शक्ति: | इलेक्ट्रॉनिक |
| परीक्षण पद्धति: | गतिशील और स्थैतिक भार परीक्षण | बिजली की आपूर्ति: | प्रत्यावर्ती धारा दिष्ट धारा |
| उपयोग: | कुर्सी | प्रकार: | परीक्षण उपकरण |
| एकक स्विच: | जीएफ, केजीएफ, एन, एलबीएफ, डब्ल्यू, केएन, टी | ड्राइविंग मोड: | परिवर्तनीय आवृत्ति मोटर और टाइमिंग बेल्ट |
| शक्ति का स्रोत: | बिजली | आयसीडी प्रदर्शन: | हाँ |
| समायोज्य आर्मरेस्ट: | हाँ | ||

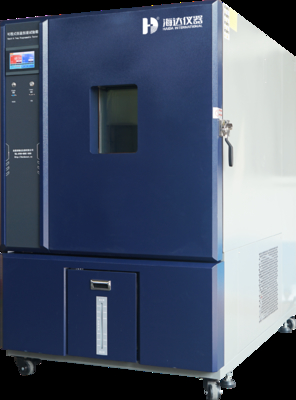

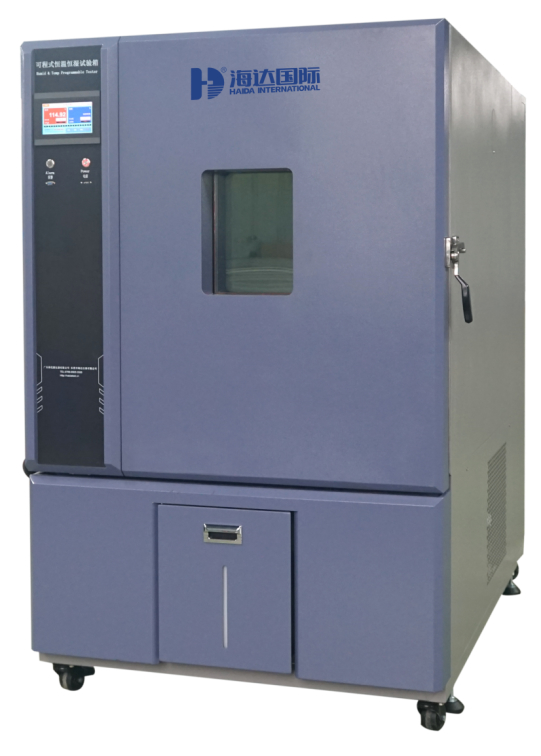

| प्रमुखता देना: | Environmental Wheelchair Test Chamber,High Temperature Wheelchair Test Chamber,Low Temperature Wheelchair Test Chamber |
||
| Temp. & Humid. Sensor | High precision PT100 Platinum resistance |
|---|---|
| Controller | Weintek |
| Display Function |
|
| Interface |
|
| Internal dimension(W*D*H) | 1200*2500*1500mm |
|---|---|
| External dimension(W*D*H) | 2500*3000*2500mm |
| Internal material | 1.2mm thickness SUS#304 stainless steel, mirror finished; |
| External material | 1.2mm thickness cold-rolled steel plate baking |
| Temperature range | -40℃ ~ + 100℃ |
|---|---|
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | ≤2℃ |
| Temperature rate | 1℃/min in average (without loading) |
| 3℃/min in average (without loading) |
| Power source | Three-phase, 380V,50Hz |
|---|---|
| Power | 3 kw |
| Current | 18 A |
| Weight | Approx. 360kg |
| Compressor | Semi-Hermertically Sealed Germany Bock compressor |
|---|---|
| Refrigerant | R449A |
| Cooling method | Single-stage compression |
| Cooling method | Air-cooled flake condenser, cooling fan for heat dissipation |
| Heating system | Nichrome stainless steel heater |
| Sample tray | SUS#304 stainless steel 2 pieces |
| Testing hole | Diameter 50mm*2, Located left and right side, for sample connecting |
| Evaporator | Finned tube heat exchanger |
| Dry filter | Absorb the residual moisture and acidic substances in the refrigerant of the refrigeration system, and filter out solid particles, copper shavings, etc. in the system to protect the normal operation of the expansion valve and capillary tube, and prevent ice blocking and dirty blocking. |
| Door handle | Non-reaction, explosion-proof door handle, easy to operate, safe and reliable |
| Insulation | 100mm polyurethane rigid foam and 100mm high density glass fiber cotton |
