उत्पाद विवरण:
|
| सामग्री: | इस्पात | वैकल्पिक सुविधाएँ: | अनुकूलन योग्य भार क्षमता और आयाम |
|---|---|---|---|
| कीवर्ड: | फर्नीचर परीक्षण मशीन | शक्ति: | इलेक्ट्रॉनिक |
| परीक्षण पद्धति: | गतिशील और स्थैतिक भार परीक्षण | बिजली की आपूर्ति: | प्रत्यावर्ती धारा दिष्ट धारा |
| उपयोग: | कुर्सी | प्रकार: | परीक्षण उपकरण |
| एकक स्विच: | जीएफ, केजीएफ, एन, एलबीएफ, डब्ल्यू, केएन, टी | ड्राइविंग मोड: | परिवर्तनीय आवृत्ति मोटर और टाइमिंग बेल्ट |
| शक्ति का स्रोत: | बिजली | आयसीडी प्रदर्शन: | हाँ |
| समायोज्य आर्मरेस्ट: | हाँ | ||
| प्रमुखता देना: | 5125-HD Burning Test Machine,Burning Test Machine with Adjustable Armrests |
||

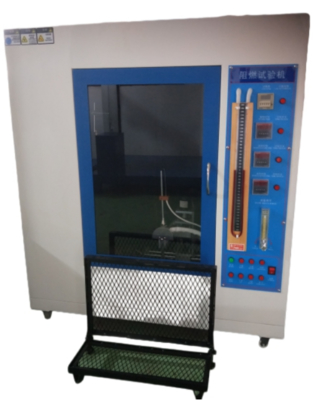

5125-HD Burning Test Machine
APPLICATIONS & TEST PURPOSE:
This device is suitable for determining the non-flammability performance of samples under direct burning by specified fire sources.
The device consists of a control panel, air box, combustion nozzle, solenoid valve, high-voltage igniter, sample holder, gas pipe, gas source, flow meter, U-shaped manometer, and signal control lines (as shown in Figure 1). The entire combustion test process of this machine is fully automated, such as electronic ignition, flameout time, combustion time, and number of combustions can all be automatically completed.
STANDARD: ISO 7176-10.8;GB/T 18029.10-2009
STANDARD FEATURES
|
Item |
Specification |
|
Nozzle inner diameter |
6.5mm |
|
Length |
200+10mm |
|
Test inclination angle |
20,45,90 degrees with manual switching |
|
Flame height |
adjustable from 20mm to 175mm |
|
Flame application time |
adjustable from 0-999.9s+0.1s |
|
Afterflame time |
0-999.9s+0.1s,automatically recorded, manually paused |
|
Afterbum time |
0-999.9s+0.1s,automatically recorded, manually paused |
|
Combustion gas |
98% methane gas or 989 propane gas (usually liquefied petroleum gas can be used as a substitute) |
|
Flow and pressure |
flow meter and U-shaped pressure gauge |
|
Test background |
black background |
|
Test process |
manual control of the test program, independent ventilation Chamber volume: 0.5 cubic meters (standard 0.5 cubic meters, 20 cubic meters customizable) |
|
Chamber volume |
0.5 cubic meters (standard 0.5 cubic meters, 20 cubic meters customizable) |
|
Cabinet material |
mirror stainless steel |
|
Equipment dimensions |
1000mm x 650mm x 1300mm(L*W*H) |
