PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment

PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment
PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment

बड़ी छवि :  PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment

उत्पाद विवरण:
उत्पत्ति के प्लेस: गुआंग्डोंग, चीन
ब्रांड नाम: HAIDA
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1

PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment

वर्णन
प्रकार: परीक्षण मशीन सटीकता वर्ग: मानक सटीकता
शुद्धता: ±15% के भीतर आवेदन: संवेदनशीलता परीक्षण, धूल परीक्षण
अनुकूलित समर्थन: ओईएम, ओडीएम शक्ति: AC380V / 50 HZ, लगभग। 5 किलोवाट
संरक्षण वर्ग: / वोल्टेज: 380 वी
गारंटी: 1 वर्ष वर्गाकार जाल छलनी की विशिष्टताएँ: जाल छेद 75um, जाल धातु तार व्यास 50um
टैल्कम पाउडर की मात्रा: 2 किग्रा/ वर्ग मीटर वायु प्रवाह की गति: 2m/s से अधिक नहीं
दरवाजा: टेम्पर्ड ग्लास वाले दरवाजे को खुला छोड़ दिया वैक्यूम पंप क्षमता: 60-600 एल/एच
वोल्टेज संरक्षण स्तर (ऊपर): केन्द्रापसारक प्रशंसक चैम्बर सामग्री: एसयूएस #304 स्टेनलेस स्टील
बाहरी सामग्री: स्प्रे पेंट प्रकार आंतरिक आयाम(डब्ल्यू*डी*एच): 800 * 800 * 800 मिमी
बाहरी आयाम(W*D*H): 1300*1100*1800मिमी
प्रमुखता देना:

PV Module dust testing chamber

,

IP6X dust-proof tester

,

PV Module dust-resistance test equipment

Product Description

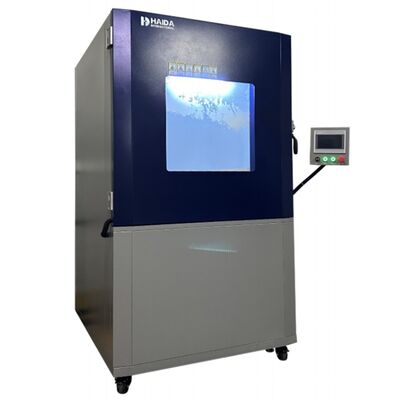

PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment 0



8089-HD
Bypass Diode Dust Test Chamber(IP6X)
1, Chamber material: SUS#304 stainless steel; 2, Transparent window is convenient to observe specimen during testing; 3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise; 4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment 2

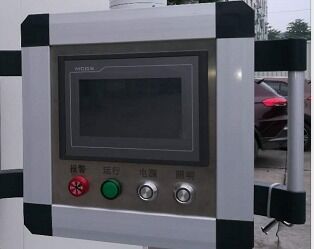

Control panel


PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment 4

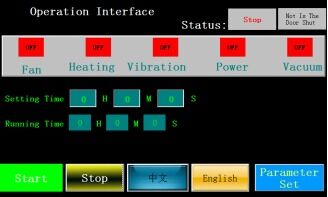

PLC operation interface


PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment 6

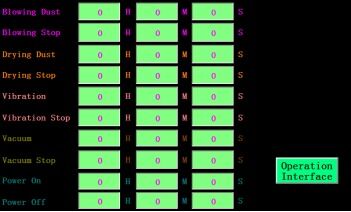

PLC operation interface


Specification

GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 1700*1500*2200mm Power supply source: 3-phase, AC380V±10%,50Hz (can be appointed) Gross Weight: 400kg HS Code: 8479899990
Item
Specification
Model
8089-HD
Internal dimension(W*D*H)
800*800*800mm
External dimension(W*D*H)
1300*1100*1800mm
Internal material
SUS304 Stainless steel
External material
Spray Paint Type
Specifications of square mesh sieve
Mesh hole 75um, mesh metal wire diameter 50um
Talcum powder amount
2kg/ m³
Airflow speed
No more than 2m/s
Door
Left open door with tempered glass door
Controller
PLC Touch Screen controller, programmable to set as below cycle:
a. Blowing dust time (Stop/Blow) m/s
b. Cycle time: can be adjusted
c. Pre-set test time: 0s ~99m99s
Vacuum system
Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump
Vacuum pump capacity
60-600 L/H
Fan
Centrifugal fan
Safety protection devices
Meter over-temperature function, Phase shortage protection, Power short-circuit protection
PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment 8
Internal chamber with sample tray & Hopper for dust collection
PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment 10
Anti-dust socket for sample connect to power source
PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment 12
Mesh and parts for filtering test dust
PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment 14






DESIGN DRAWING AS PER IEC60529 & IEC20653

Company Profile
PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment 16
Our Partners
PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment 18
Our Advantages
Our Service
* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
* We can offer operation video and English operation muanual.
* We can provide video-con.

Onsite Service:
* Device installation;
* Equipment Operation Test Technology training;
* Equipment Calibration;
* Daily maintenance and maintenance of equipment
* Free technical training for visiting factories
* 24-hour Online contact
* Free software upgrades
* Free information:
* Product Instruction;
* Product operation instruction/video;
* Experiment Test (test application, test report)

Device Problem Handling:
* Social media 24 hours online communication;
* Mail Seamless Docking;
* Video Conferencing;
* Artificial free door-to-door service
