उत्पाद विवरण:
|
| आवेदन: | बैटरी परीक्षण | वायरिंग पद्धति: | एसी थ्री-फेज फोर-वायर |
|---|---|---|---|
| प्रदर्शन: | एलसीडी | संकल्प: | 0.001V/0.001a |
| वायरिंग पद्धति: | एसी 220V | वर्तमान संकल्प: | 1mA |
| संचार इंटरफेस: | आरएस232/आरएस485/यूएसबी/ईथरनेट | नियंत्रण विधा: | मैनुअल/स्वचालित |
| वर्तमान श्रृंखला: | 0-50ए | तापमान की रेंज: | -20 डिग्री सेल्सियस से 50 डिग्री सेल्सियस |
| बिजली आपूर्ति वोल्टेज: | 220 ± 10% VAC | कैबिनेट आकार: | 600*850*1980 (डब्ल्यू*डी*एच मिमी) |
| शीतलन विधि: | हवा ठंडी करना | बिजली आपूर्ति आवृत्ति: | 50% 5% हर्ट्ज |
| वोल्टेज सटीकता: | ± (0.05%+0.05%एफएस) | थ्रेड: | <5% |
| चैनल की संख्या: | 4 | टेस्ट मोड: | निरंतर वर्तमान, निरंतर वोल्टेज, निरंतर शक्ति, निरंतर प्रतिरोध |
| संरक्षा विशेषताएं: | ओवरवॉल्टेज, ओवरक्रैक, ओवरपावर, ओवरटेम्परेचर प्रोटेक्शन | आईपी ग्रेड: | IP20 |
| डेटा रिकॉर्डिंग अंतराल: | 10ms |

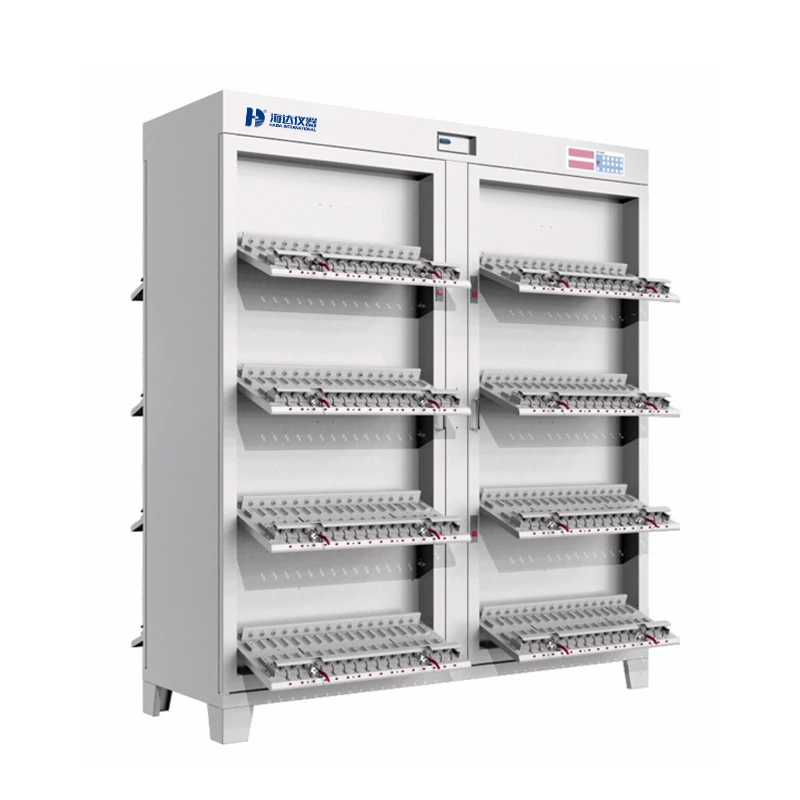

Battery Formation& Grading Machine For Lithium ion Battery 5V 5A It can used for cylindrical batteries(18650,21700) which widely applied in Consumer electronics,covering Cell phones, laptops, drones battery capacity and more.
Prismatic Cell Grading Machine with energy feedback function is the latest generation of energy-saving battery testing equipment based on PWM high-frequency power feedback technology. after years of research and development. It is widely used in lithium-ion batteries and nickel-metal hydride batteries formation and capacity testing of nickel-cadmium batteries.
| Model | 8002-HD |
| Channels | 512 Channels |
| Voltage Range | DC0~5V |
| Voltage Accuracy | 0.1mV |
| Output Current Range | 50mA ~5A |
| Current Accuracy | 0.1mA |
| Jig Form | Push Down Four Wire Method Fixture |
| Fixture Spacing | 85mm |
| Battery Type | Prismatic Cell |
| Working Power Supply | Three-Phase Five-Wire Ac380V±10%, 50Hz |
| Ac Current Distortion Rate | ≤5% |
| Power Consumption | ≤13Kw |
| Power Factor | ≥0.99 |
| Charging Efficiency Of Whole Machine | ≥75% |
| Feeder Net Conversion Efficiency | ≥70% |
| Equipment Failure Rate | <1% |
| Work Environment | Temperature -10 ~ 40℃, Relative Humidity ≤80% |
| Heat-Dissipating Method | Natural Air Intake And Upward Exhaust |
| Control mode | Computer control equipment operation, whole cabinet control/single board start/single point start, with scanning system |
| Communication mode | 485 serial port communication (baud rate 57600)/TCP communication |
| Process setting | Up to 32 steps and 256 cycles can be set |
| Charge voltage | time Constant current, constant voltage, constant current constant voltage |
| Charge end conditions | Voltage, current, time, capacity, -△V |
| Discharge mode | Constant current, constant power, constant resistance |
| Discharge end conditions | Voltage, time, capacity |
| Time range | 0~3000 minutes/step, time unit is min |
| Time accuracy | <+1%60 |
