उत्पाद विवरण:
|
| आवेदन: | बैटरी परीक्षण | वायरिंग पद्धति: | एसी थ्री-फेज फोर-वायर |
|---|---|---|---|
| बिजली की आपूर्ति: | एसी | कैबिनेट आकार: | 600*850*1980 (डब्ल्यू*डी*एच मिमी) |
| संचार इंटरफेस: | आरएस232/आरएस485 | वर्तमान स्विचिंग समय: | 20ms (-90% ~ 90% एफएस) |
| थ्रेड: | <5% | बिजली उत्पादन: | 24KW |
| आगत बहाव: | 42.9 ए/चरण | इनपुट ए.सी: | एसी 380V ± 15%/50/60 ± 5Hz |
| चैनल की संख्या: | 4 | क्षमता: | 16 ~ 24s 100a/200a/300a |
| वर्तमान सटीकता: | +/- 0.1% | आउटपुट करेंट: | 30 ए, 60 ए, 100 ए, 150 ए, 300 ए |
| चार्ज करंट रेंज: | 0-10ए | डिस्चार्ज वोल्टेज रेंज: | 0-100 वी |
| वोल्टेज संकल्प: | 1 एमवी | डिस्चार्ज करंट रेंज: | 0-10ए |
It can used for cylindrical batteries(18650,21700) which widely applied in Consumer electronics,covering Cell phones, laptops, drones battery capacity and more.

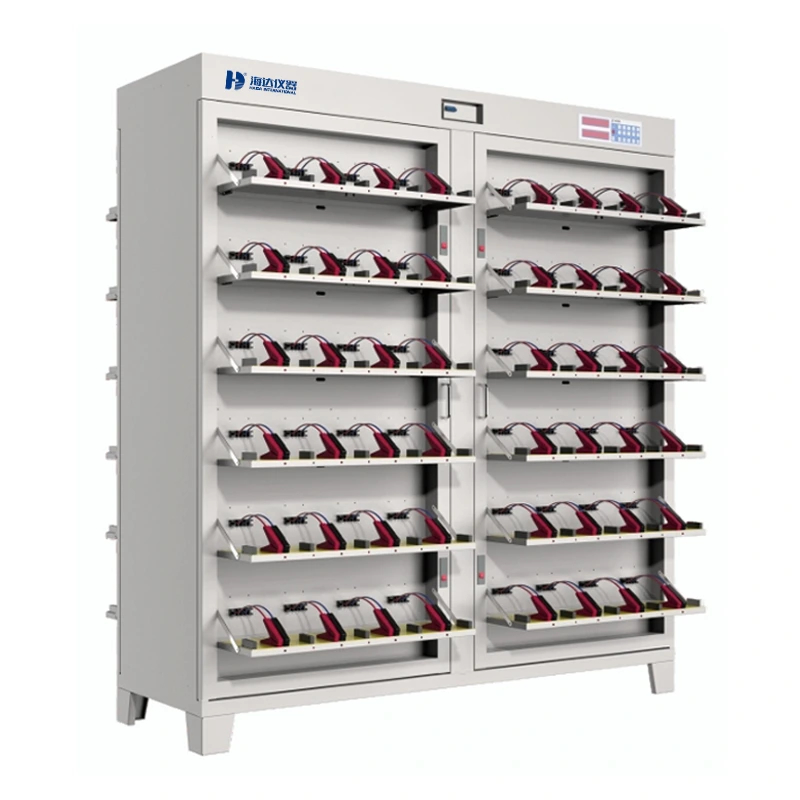

5V 30A Battery Formation& Grading Machine It can used for cylindrical batteries(18650,21700) which widely applied in Consumer electronics,covering Cell phones, laptops, drones battery capacity and more.
Prismatic Cell Grading Machine with energy feedback function is the latest generation of energy-saving battery testing equipment based on PWM high-frequency power feedback technology . after years of research and development. It is widely used in lithium-ion batteries and nickel-metal hydride batteries formation and capacity testing of nickel-cadmium batteries.
| Model | 8005-HD |
| Channels | 96 Channels |
| Voltage Range | DC0~5V |
| Voltage Accuracy | 0.1mV |
| Output Current Range | 100mA ~30A |
| Current Accuracy | 0.1mA |
| Jig Form | Push Down Four Wire Method Fixture |
| Fixture Spacing | 78.5mm |
| Battery Type | Single Cell Power Battery |
| Working Power Supply | Three-Phase Five-Wire Ac380V±10%, 50Hz |
| Ac Current Distortion Rate | ≤5% |
| Power Consumption | ≤13Kw |
| Power Factor | ≥0.99 |
| Charging Efficiency Of Whole Machine | ≥75% |
| Feeder Net Conversion Efficiency | ≥70% |
| Equipment Failure Rate | <1% |
| Work Environment | Temperature -10 ~ 40℃, Relative Humidity ≤80% |
| Heat-Dissipating Method | Natural Air Intake And Upward Exhaust |
| Control mode | Computer control equipment operation, whole cabinet control/single board start/single point start, with scanning system |
| Communication mode | 485 serial port communication (baud rate 57600)/TCP communication |
| Process setting | Up to 32 steps and 256 cycles can be set |
| Charge voltage | time Constant current, constant voltage, constant current constant voltage |
| Charge end conditions | Voltage, current, time, capacity, -△V |
| Discharge mode | Constant current, constant power, constant resistance |
| Discharge end conditions | Voltage, time, capacity |
| Time range | 0~3000 minutes/step, time unit is min |
| Time accuracy | <+1%60 |
