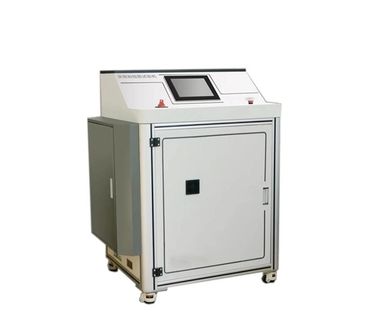

Boost Battery Performance with Charge / Discharge Battery Testing System for Maximum Efficiency

Boost Battery Performance with Charge / Discharge Battery Testing System for Maximum Efficiency
Boost Battery Performance with Charge / Discharge Battery Testing System for Maximum Efficiency

बड़ी छवि :  Boost Battery Performance with Charge / Discharge Battery Testing System for Maximum Efficiency

उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Haida
प्रमाणन: CE,,ISO
मॉडल संख्या: 9001-HD
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: प्रत्येक सेट राल फाइबर और पीपी फिल्म के साथ संरक्षित है, फिर ऑपरेशन मैन के साथ मजबूत लकड़ी के मामले
प्रसव के समय: आदेश की पुष्टि के 20 दिन बाद
भुगतान शर्तें: एल/सी, टी/टी, डी/ए, डी/पी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता: प्रति माह 300 सेट

Boost Battery Performance with Charge / Discharge Battery Testing System for Maximum Efficiency

वर्णन
आवेदन: बैटरी परीक्षण वायरिंग पद्धति: एसी थ्री-फेज फोर-वायर
प्रदर्शन: एलसीडी वर्तमान सीमा: 0-10ए
संकल्प: 0.001V/0.001a वायरिंग पद्धति: एसी 220V
शुद्धता: ± 0.1% बिजली की आपूर्ति: एसी
प्रमुखता देना:

LCD Charge Discharge Battery Testing System

,

AC 220V Charge Discharge Battery Testing System

Product Overview
This restricted short-circuit test device is designed to verify the compatibility of protective grounding conductors and overcurrent protection devices (rated ≤25A) with fault currents up to 1500A, and to assess the integrity of supplementary safety protections.

It complies with Clause 5.6.4.1, 5.6.5.1, and Appendix R of IEC 62368-1:2018, EN 62368-1:2019, and GB 4943.1-2022, applicable to audio, video, information, and communication technology equipment.

Working Principle
The system uses an energy storage device to generate instantaneous high-current outputs. Discharge time and initial voltage are adjustable. After each discharge, the unit auto-recharges for subsequent tests. Discharge current is recorded and displayed as a current-time curve.

Key Features

  • Complies with IEC 62368-1, EN 62368-1, and GB 4943.1-2022

  • 15-inch color touch LCD with built-in thermal printer

  • High-precision sensors and 14-bit AD conversion

  • User-friendly keyboard and touchscreen operation

  • Supports automatic/manual current ramp and fast-break tests

  • Real-time current and time monitoring

  • Overcurrent protection with adjustable current and timing limits

  • Grounding and zero-return detection for safe operation

  • Smart current control with auto-zeroing and alarms

  • Robust anti-interference design for harsh environments

  • Optional remote communication, door interlock, and voltage verification interfaces

Technical Specifications

  • Control System: PLC + touchscreen HMI

  • Test Stations: 1

  • Current Range: <25A

  • Max. Current: ≥1500A (customizable)

  • Discharge Time: 5–100 ms (adjustable)

  • Test Mode: AC/DC switchable

  • Discharge Voltage: Customizable

  • Timer: Configurable via touchscreen

  • Standard Includes: DC power supply, overcurrent protector, 4×3m test cables (2.5 mm²)

  • Functions: Adjustable discharge voltage/timing, overvoltage/overcurrent protection

  • Safety: Insulated connections, fault alarm system

  • Dimensions: 1250mm × 960mm × 1650mm (W×D×H)

  • Power Supply: AC 220V, 50HzBoost Battery Performance with Charge / Discharge Battery Testing System for Maximum Efficiency 0

  • Boost Battery Performance with Charge / Discharge Battery Testing System for Maximum Efficiency 1
